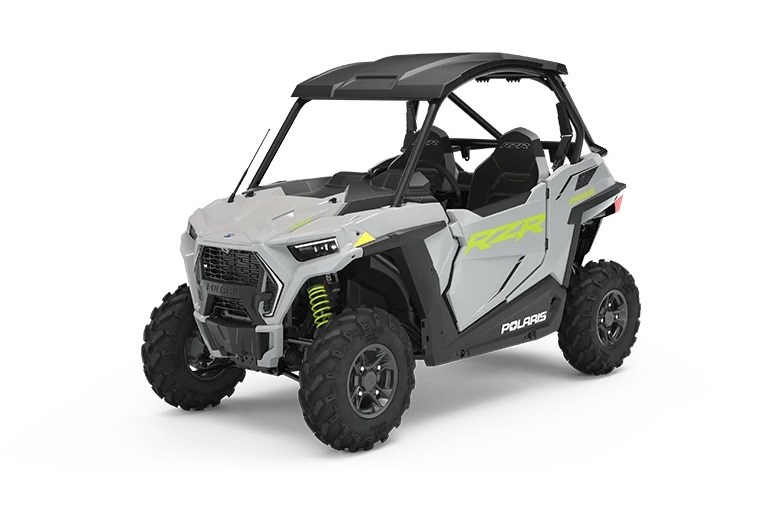

2022 Polaris RZR Trail Ultimate

2022 Polaris RZR Trail Ultimate
Ghost Gray
MSRP: $20,299.00
Manufacturer: Polaris
Condition: New

Description

The most equipped 50" machine. Take your trail adventure to the next level with Ride Command® Technology and Rockford Fosgate ® premium audio.

Specifications

ENGINE & DRIVETRAIN

Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
High Performance True On-Demand AWD/2WD/VersaTracTurf Mode
Engine Braking System (EBS)
Yes
Engine Type
4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
75 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H


DIMENSIONS

Bed Box Dimensions (L x W x H)
20.7 x 37 x 7.9 in (52.5 x 94 x 20 cm)
Box Capacity
300 lb (136 kg)
Estimated Dry Weight
1,297 lb (588 kg)
Fuel Capacity
9.5 gal (35.9 L)
Ground Clearance
11 in (27.9 cm)
Hitch Towing Rating
1,500 lb (680 kg)
Overall Vehicle Size (L x W x H)
110.9 x 50 x 67.9" (282 x 127 x 172.5 cm)
Payload Capacity
740 lb (336 kg)
Wheelbase
79 in (200.7 cm)


BRAKES

Front/Rear Brakes
4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers
Parking Brake
Park In-Transmission


ADDITIONAL SPECIFICATIONS

Cargo System
Lock & Ride
Doors
Full Door
Electronic Power Steering
Yes
Hitch Type
Standard 1.25 in (3.2 cm) Receiver
Instrumentation
RIDE COMMAND® 7” Glove-Touch Display: Digital Instrumentation, Built-In GPS, Group ride (cell and non-cell communications), Topographic Mapping, Bluetooth & USB Smartphone Connectivity, AM/FM & Weather Radio Capable, In-Vehicle Communications Capable With Optional Sena Headsets, Rockford Fosgate Stage 1 Audio, Dual-sweep Analog Dials w/ 4" LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder Light, Gear Indicator, DC Outlet + 12V Power Plug
Lighting
Front Blacked Out Signature White LED Low/High with Accent Lights & Red LED Tail / Brake Lights
Other Standard Features
Poly Roof, Rear Camera, Turf Mode, Adjustable Tilt Steering
Seat Type
Bolstered Bucket Seats with Toolless Driver Seat Slider and Standard Passenger Seat Slider (Tool Required for Adjustment on Passenger Seat)


TIRES / WHEELS

Front Tires
26 X 8 X 12; PXT
Rear Tires
26 X 9 X 12; PXT
Wheels
Cast Aluminum


SUSPENSION

Electronic Suspension Control System
N/A
Front Shocks
FOX® 2.0 PODIUM X
Front Suspension
Dual A-Arm with Stabilizer Bar and 10" (25.4 cm) Wheel Travel
Rear Shocks
FOX® 2.0 PODIUM X
Rear Suspension
Dual A-Arm with Stabilizer Bar and 10 in (25.4 cm) Wheel Travel
Turning Radius
13.61'


Features

FEATURES

  • LEADING TRAIL CAPABILITY Ride any trail with the nimble agility, instant acceleration and quick handling of RZR Trail.
  • QUICKEST ACCELERATING With its class-leading power-to-weight advantage you’re greeted with instant response and lightning-quick acceleration with every push of the pedal.
  • CHOOSE THE PERFECT LINE Let the easy steering, class-leading turning radius, and compact width and wheelbase give you the precision and confidence to navigate twisting trails.
  • ALL DAY ADVENTURE Never worry about the adventure stopping unexpectedly with durable clutches for smooth engagement and a strong belt life.
  • ALL-DAY COMFORT You want the feeling of the perfect trail ride to last forever, and with the best suspension and the all-day comfort of RZR Trail you can.
  • PLUSH SUSPENSION Enjoy a smooth ride with 10" of suspension travel controlled by premium FOX 2.0 Podium X shocks that soaks up every bump, rut and rock, and roll over the terrain with ease on 26" tires.
  • IMPROVED & ADJUSTABLE ERGONOMICS With optimized ergonomics for improved comfort and better sight lines, stay out on the trails longer. With an adjustable seat, new cut & sew seat design, and tilt steering wheel, you’ll get the perfect position for you -- no matter your size.
  • SUPERIOR PROTECTION Ride challenging terrain with the added security and protection from rocks and sticks with new, sturdy full doors and wrap-around roll cage for rear coverage.
  • ADVANCED TECHNOLOGY RZR Trail elevates your ride experience with industry-leading RIDE COMMAND technology integrated into a 7" glove touch display and factory-installed Rockford Fosgate premium audio.
  • ULTIMATE CONNECTIVITY OF RIDE COMMAND Plan and track your ride to share with friends, discover new trails with GPS navigation, and keep your group in sight with Group Ride.
  • PREMIUM FACTORY AUDIO Turn-up the perfect soundtrack for any ride with the loud, clean and pure sound of available Rockford Fosgate factory-installed audio.
  • VISIBILITY OF LED LIGHTING See further down the trail with advanced, high-intensity brightness and clarity of available LED headlights and signature accent lighting.

All inventory listed is subject to availability and prior sale. Manufacturer's Suggested Retail Price (MSRP) if shown for a vehicle excludes set-up, freight, taxes, title, licensing or other dealer charges, and is subject to change. Individual prices may vary. Please request a quote for specific pricing.
